Beskrivelse

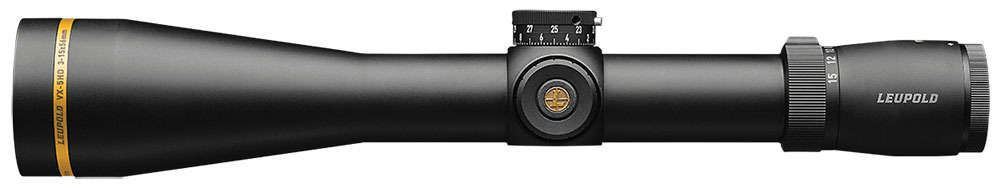

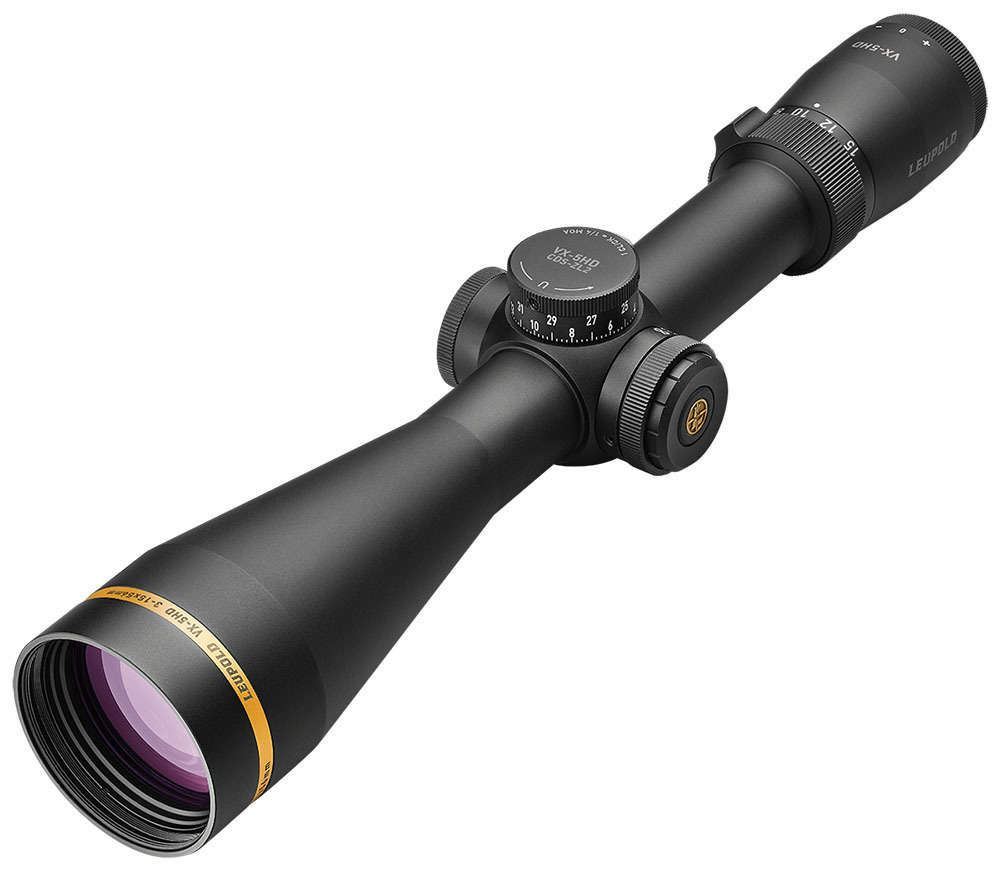

Leupold VX-5HD 3-15x56mm (30mm) CDS-ZL2 Side Focus Matte Firedot Duplex
VX-5HD tar optisk ytelse til et helt nytt nivå! Den har et High-Definition optisk system som gir kikkerten en fantastisk skarphet og klarhet. Oppløsningen og alt annet er endel av Leupolds Twilight Max Light Management System.
Leuold VX-5HD 3-15x56mm (30mm) CDS-ZL2 Side Focus Matte Firedot Duplex
VX-5HD tar optisk ytelse til et helt nytt nivå! Den har et High-Definition optisk system som gir kikkerten en fantastisk skarphet og klarhet. Oppløsningen og alt annet er endel av Leupolds Twilight Max Light Management System. Noe som gir jegere en synlig fordel ved daggry og skumring.
- Montasjestørrelse/mellomrør: 30mm
- Vekt: 632 gram
- Lengde: 34,5 cm
- Lengde: 31,7 cm
Leupold signerer med sin 30 års garanti på denne varen!
There are places where you can only take the essentials; the VX®-5HD has everything you need and nothing you don’t. With high-definition lenses and extended low-light hunting performance, you can make the most of every second. When it’s time to pull the trigger, you’ll want the accuracy and additional elevation the two-turn CDS ZeroLock 2 dials deliver. And as the lightest, most rugged 5:1 riflescope in its class, your VX-5HD will never slow you down.
Egenskaper:
- 30mm Maintube
- 5:1 Zoom Ratio
- 6061-T6 Aircraft Quality Aluminum
- CDS-ZL2 Zero Lock Adjustment with Revolution Indicator
- FireDot Illumination
- Generous Eyebox
- Guard-Ion Rain Shedding Coating
- MST (Motion Sensor Technology)
- Pop Up Rezero Windage Adjustment
- Push Button Illumination
- Side Focus
- Twilight Max Light Management System
- Twin Bias Spring Erector System
| Length – A (in) | 13.58 |
| Mounting Space – B (in) | 5.32 |
| Illustration – C | 1.26 |
| Illustration – D | 2.59 |
| Eyepiece Length – E | 3.31 |
| Objective Length – F | 4.94 |
| Objective Diameter – G | 2.54 |
| Eyepiece Diameter – H | 1.80 |
| Tube Diameter- k (in) | 1.18 |
| Tube Diameter- k (mm) | 30 |
| Length – A (cm) | 34.5 |
| Mounting Space – B (cm) | 13.5 |
Specifications
| Adjustable Parallax | Side Focus |
|---|---|
| Battery Type | CR2032 |
| BDC Dial Included | No |
| Custom Dial System (CDS) | Yes |
| Custom BDC Dial Compatible | Yes |
| Daylight Bright Illumination | Yes |
| Elevation Adjustment Type | CDS-ZL2 |
| Electronic Reticle Level | No |
| Light Management System | Professional-Grade Optical System |
| Locking Dial | Yes |
| Magnification Type | Variable |
| Nightvision Compatible Illumination | No |
| Reticle Focal Plane | Second Focal Plane |
| Revolution Indicator | Yes |

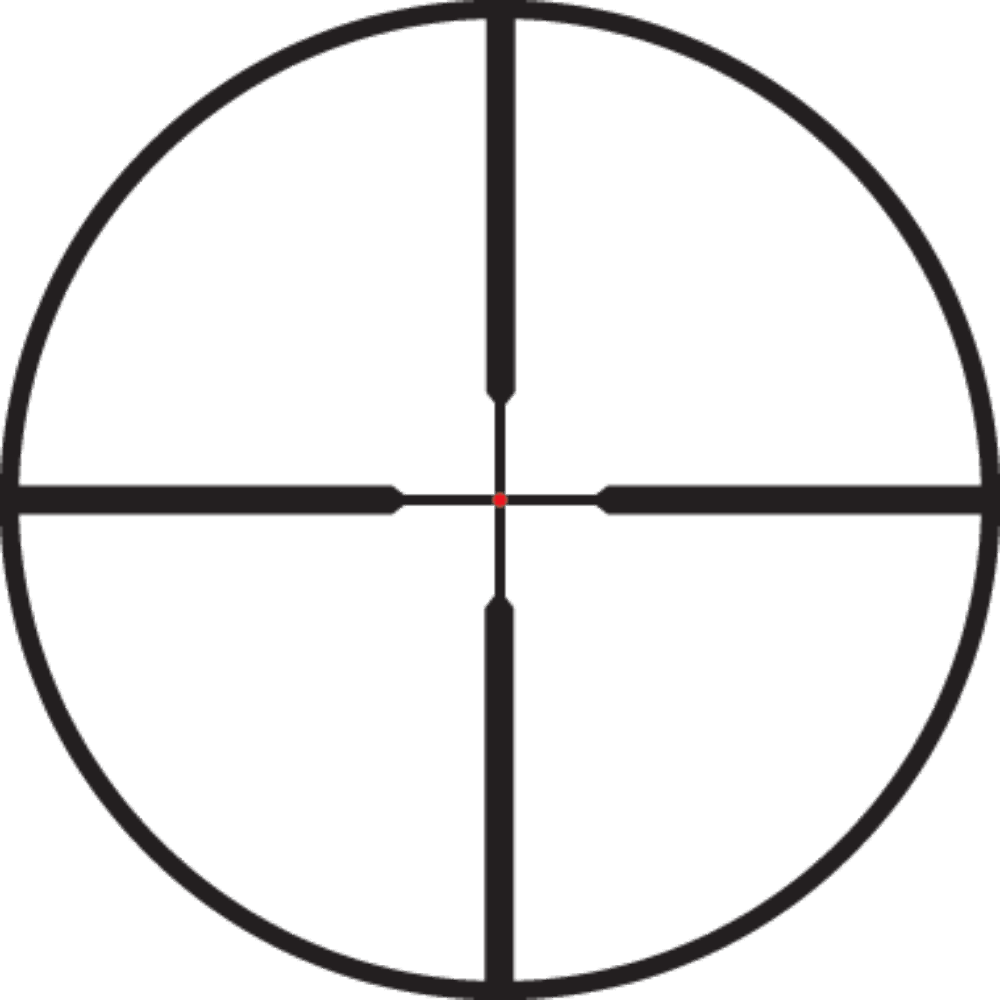

| Reticle | Illum. FireDot Duplex |
| Rezero Type | Set Screw |
| Reticle Type | Illuminated |
| Adjustable Objective | No |
| Switch Type | Push Button |
| Windage Adjustment Type | Pop-Up Rezero |
| Weight (oz) | 22.2 |
| Elevation Adjustment Value per Click | 1/4MOA |
| Elevation Adjustment Range (MOA) | 75 |
| Elevation Adjustment Range (MIL) | 22 |
| Elevation Adjustment Range (cm @ 100m) | 218 |
| Elevation Adjustment Per Revolution | 20 MOA |
| Elevation Dial Travel Limit | 38MOA |
| Windage Adjustment Value per Click | 1/4MOA |
| Windage Adjustment Range (MOA) | 75 |
| Windage Adjustment Range (MIL) | 22 |
| Windage Adjustment Range (cm @ 100m) | 218 |
| Windage Adjustment Per Revolution | 15 MOA |
| Magnification Max | 15 |
| Magnification Min | 3 |
| Objective Lens Diameter (mm) | 56 |
| Linear FOV Low Mag (ft@100yds) | 38.3 |
| Linear FOV High Mag (ft@100yds) | 7.7 |
| Angular FOV Low Mag (Degrees) | 7.3 |
| Angular FOV High Mag (Degrees) | 1.5 |
| Eye Relief Low Mag (in) | 3.7 |
| Eye Relief High Mag (in) | 3.8 |
| Minimum Parallax-Free Distance (yd) | 50 |
| Battery Life (hr), Low Intensity | 1600 |
| Battery Life (hr), Medium Intensity | 1000 |
| Battery Life (hr), High Intensity | 300 |
| Number of Illum Settings | 8 |
