Produktbeskrivelse

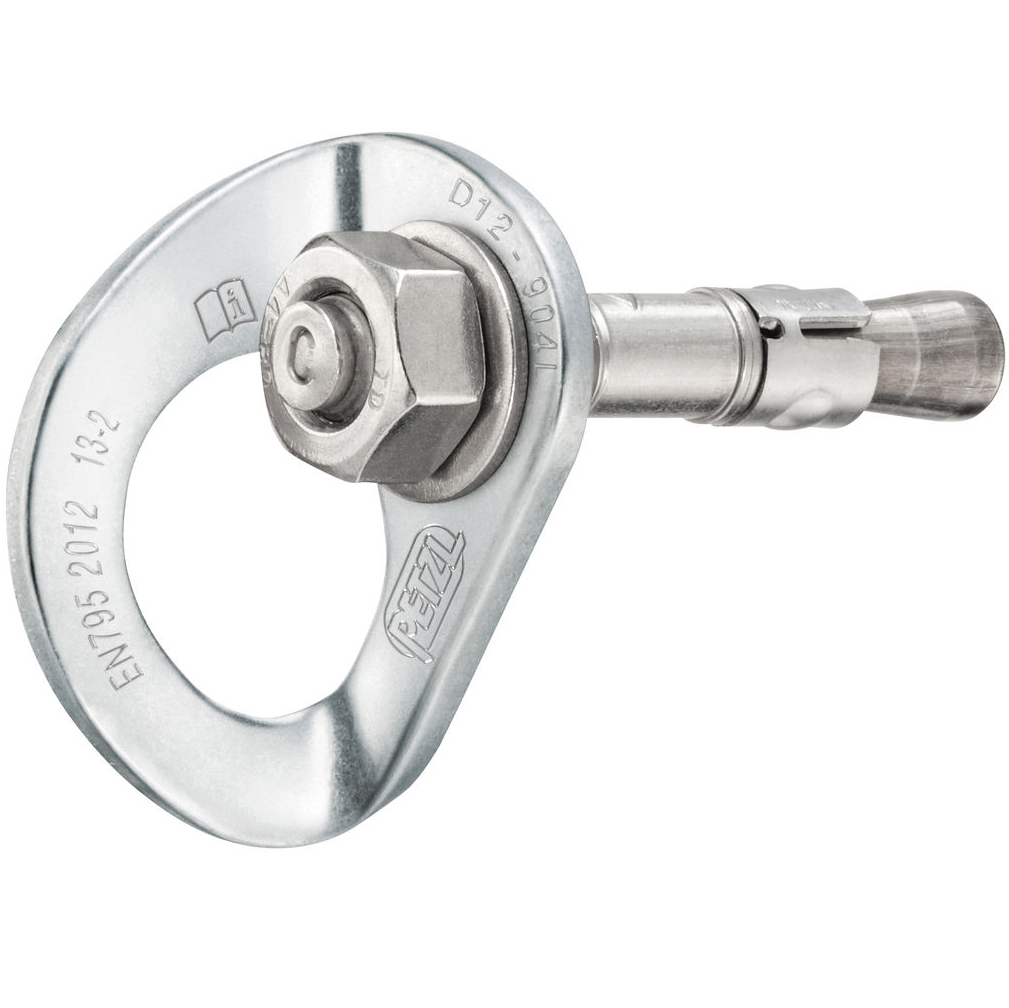

Petzl COEUR BOLT HCR 20pk
High Corrosion Resistance stainless steel anchor for corrosive environments (pack of 20)
High Corrosion Resistance stainless steel anchor, made up of a COEUR HCR hanger, a 12 mm diameter bolt, and a nut, and is designed for use in corrosive environments, including coastal environments…
Detailed description
- Complete and durable assembly:
– comprised of a COEUR HCR hanger, a 12 mm diameter bolt, and a nut
– HCR 904 (High Corrosion Resistance) stainless steel, designed for corrosive environments, including coastal environments…
– hanger anti-rotation system: textured back keeps the hanger from turning when the anchor is being installed or when it is heavily laterally loaded during use - Easy to clip:

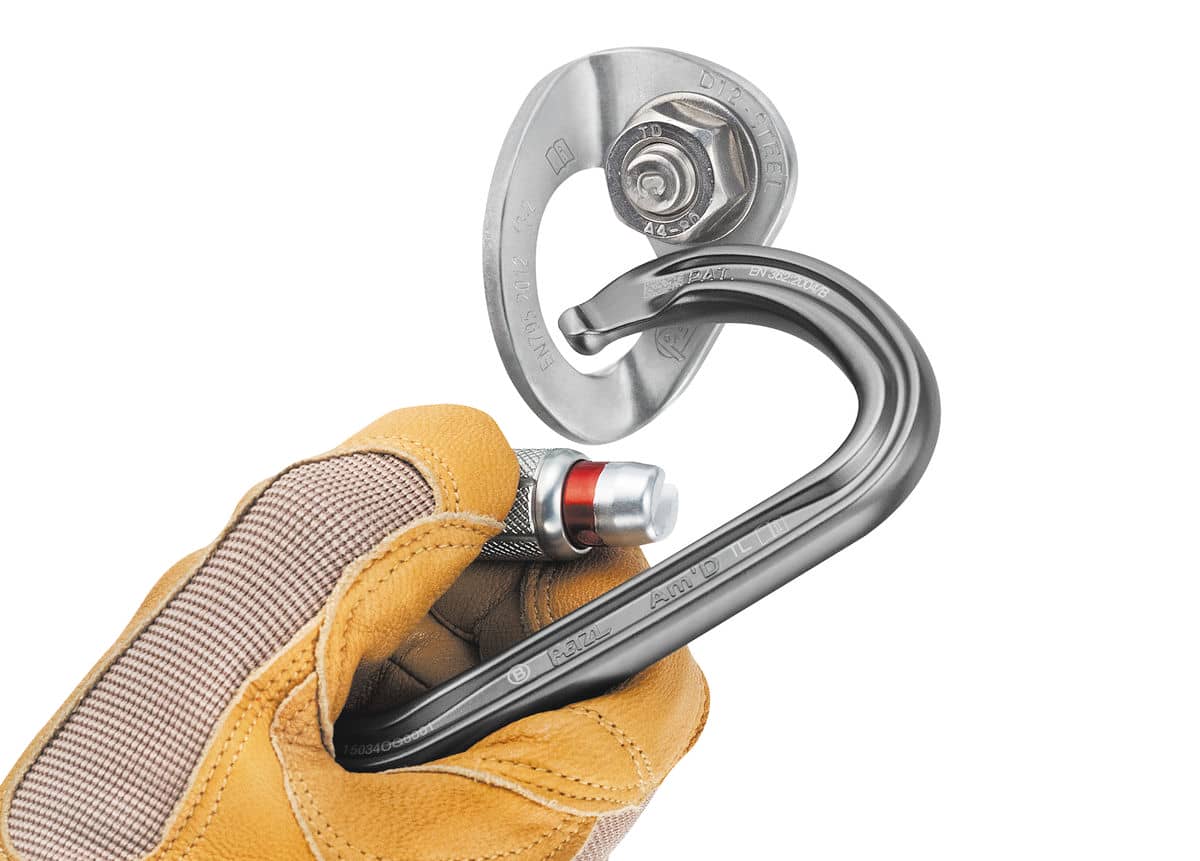

– the wide, ergonomic connection point facilitates carabiner clipping
– the width of the attachment point allows installation of two carabiners at the same time - Reduces wear on carabiners: the thickness of the hanger and the rounded edges of the connection point minimize wear on carabiners
Specifications
- Material(s): 904 HCR (High Corrosion Resistance) stainless steel
- Certification(s): EN 959
SKUs
| SKUs | P36BH 12 |
|---|---|
| Diameter | 12 mm |
| Total bolt length | 85 mm |
| Weight | 135 g |
| Drilling diameter | 12 mm |
| Shear strength in 50 MPa concrete | 25 kN |
| Pull-out strength in concrete 50 MPa | 18 kN |
| Guarantee | 3 years |
| Inner Pack Count | 1 |
