Beskrivelse

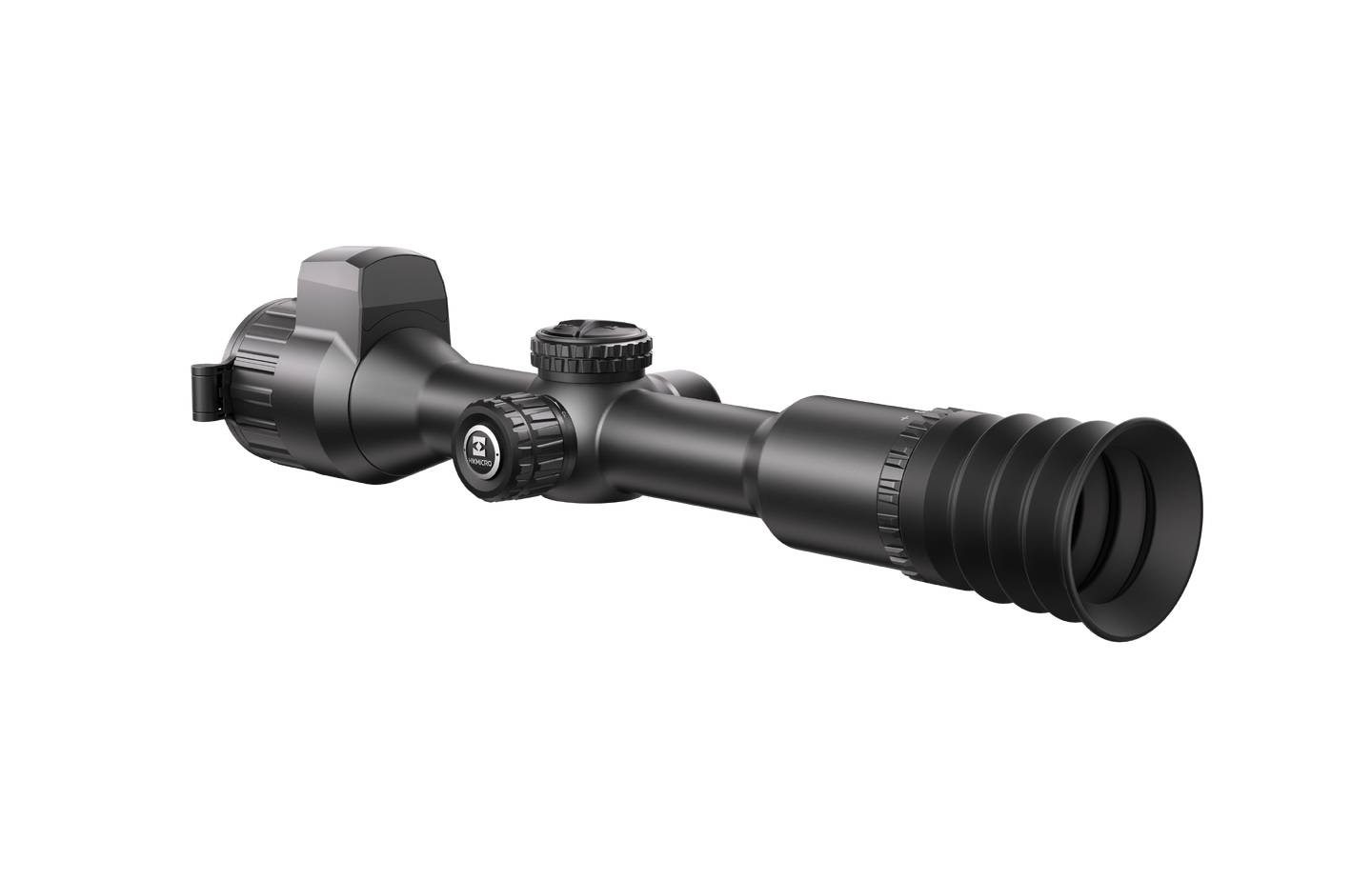

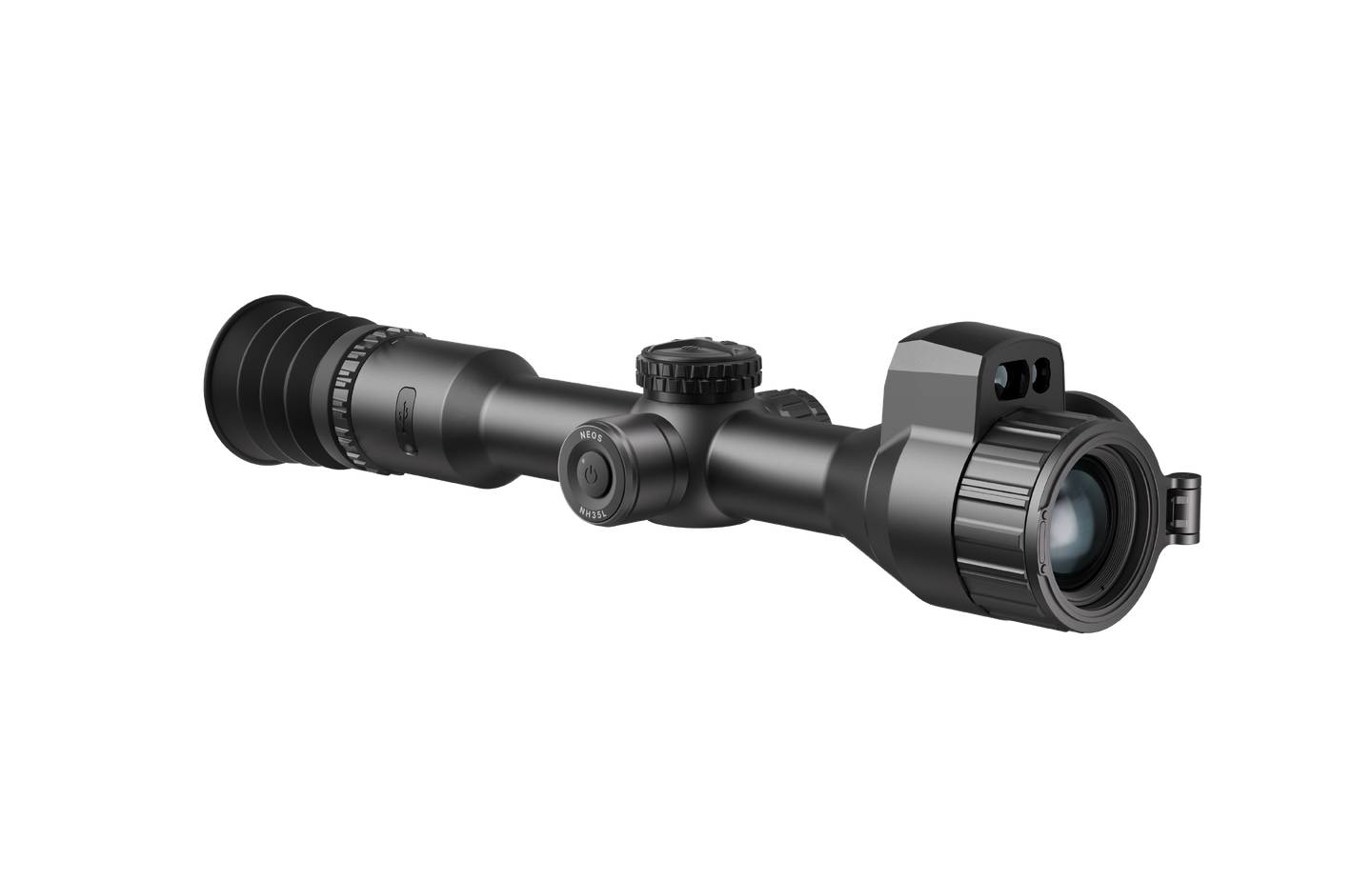

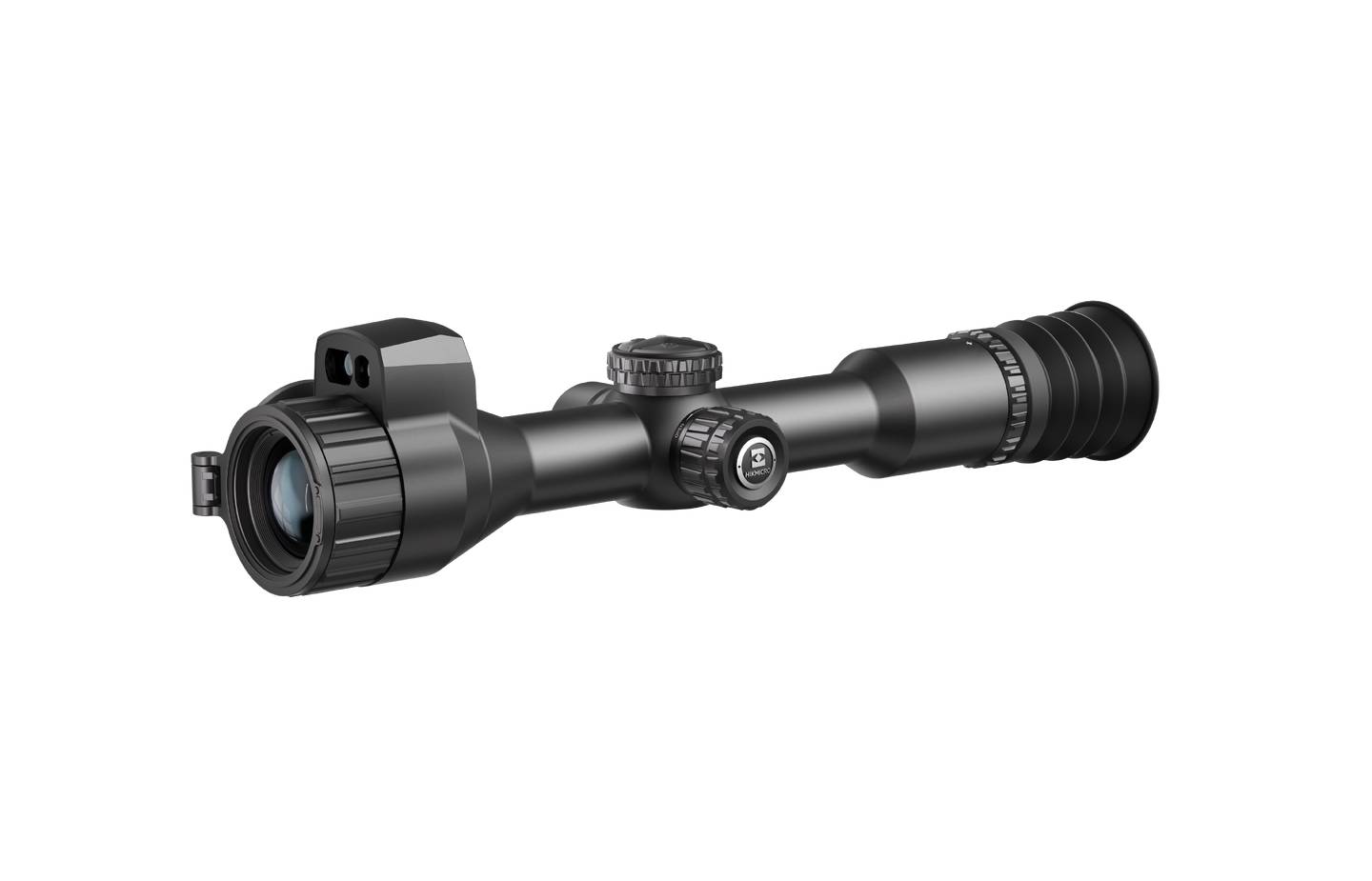

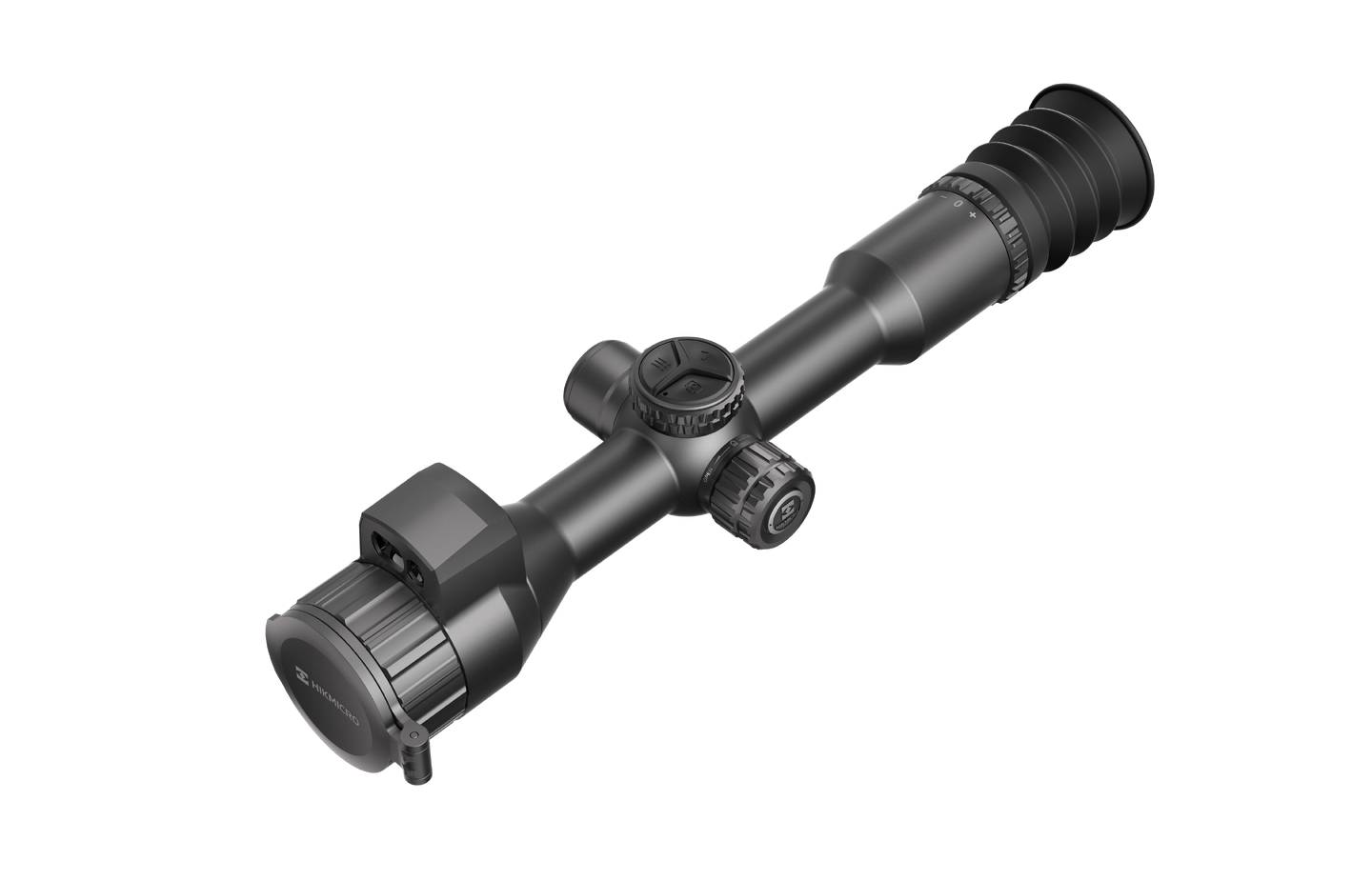

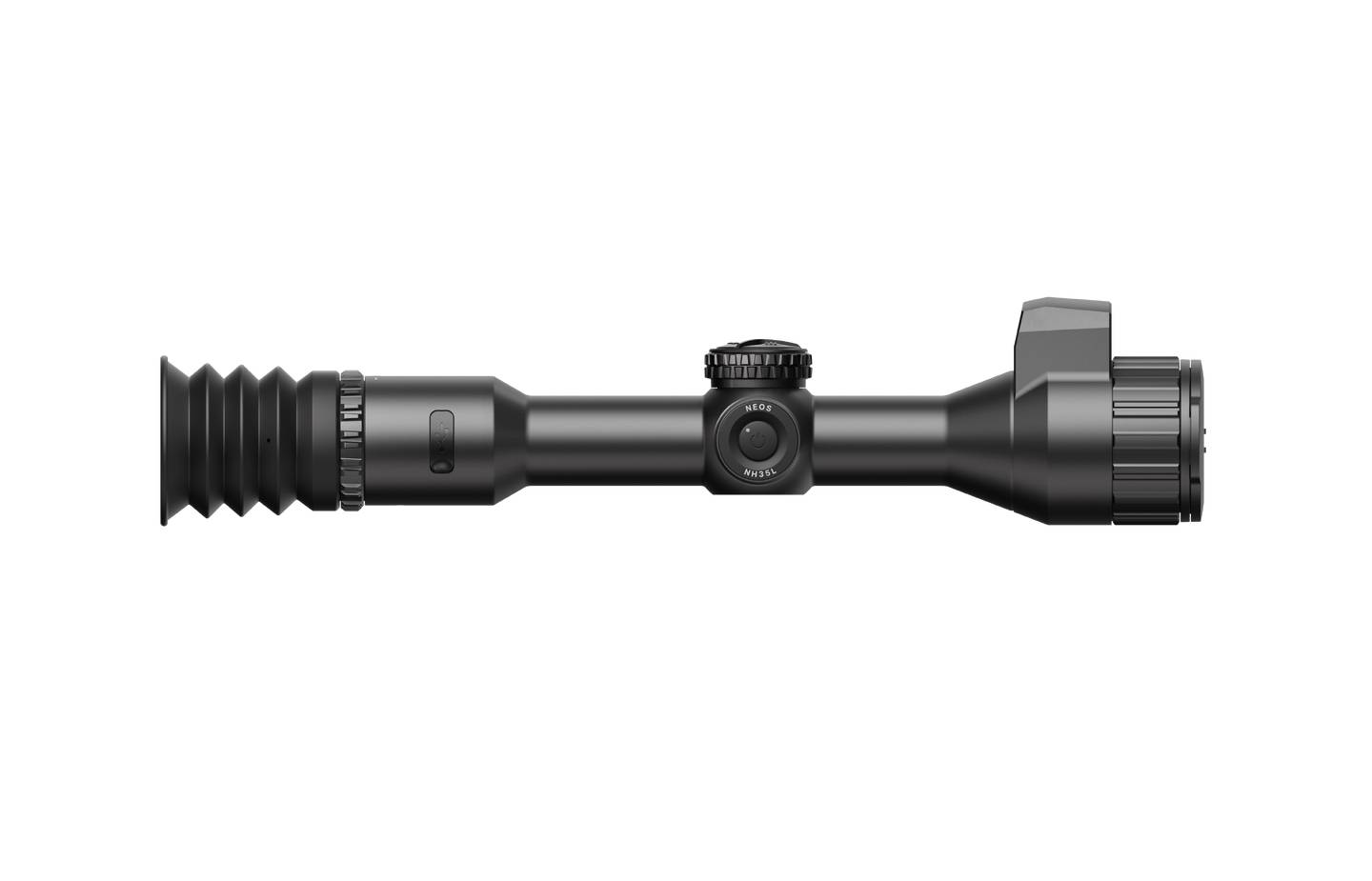

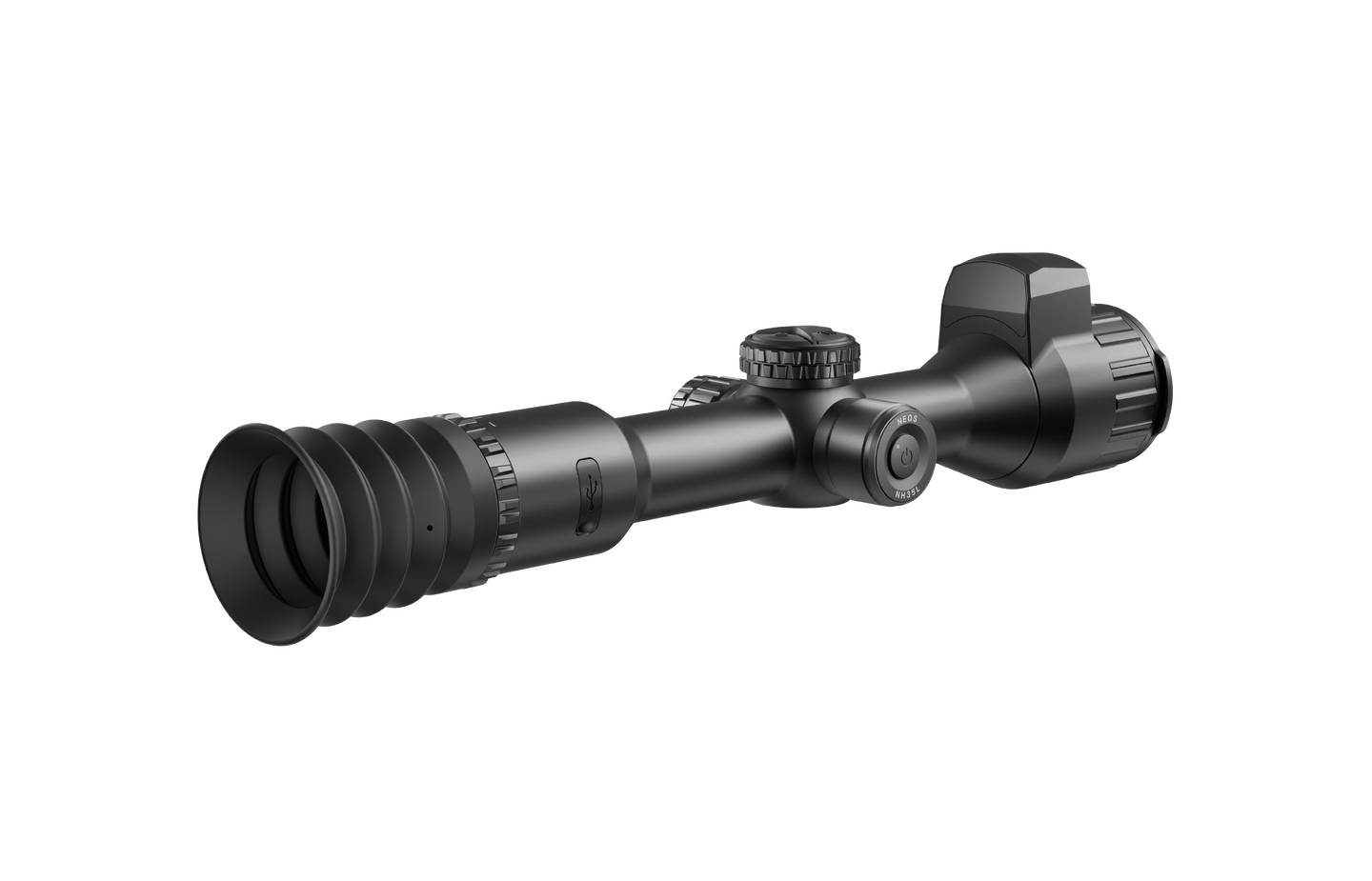

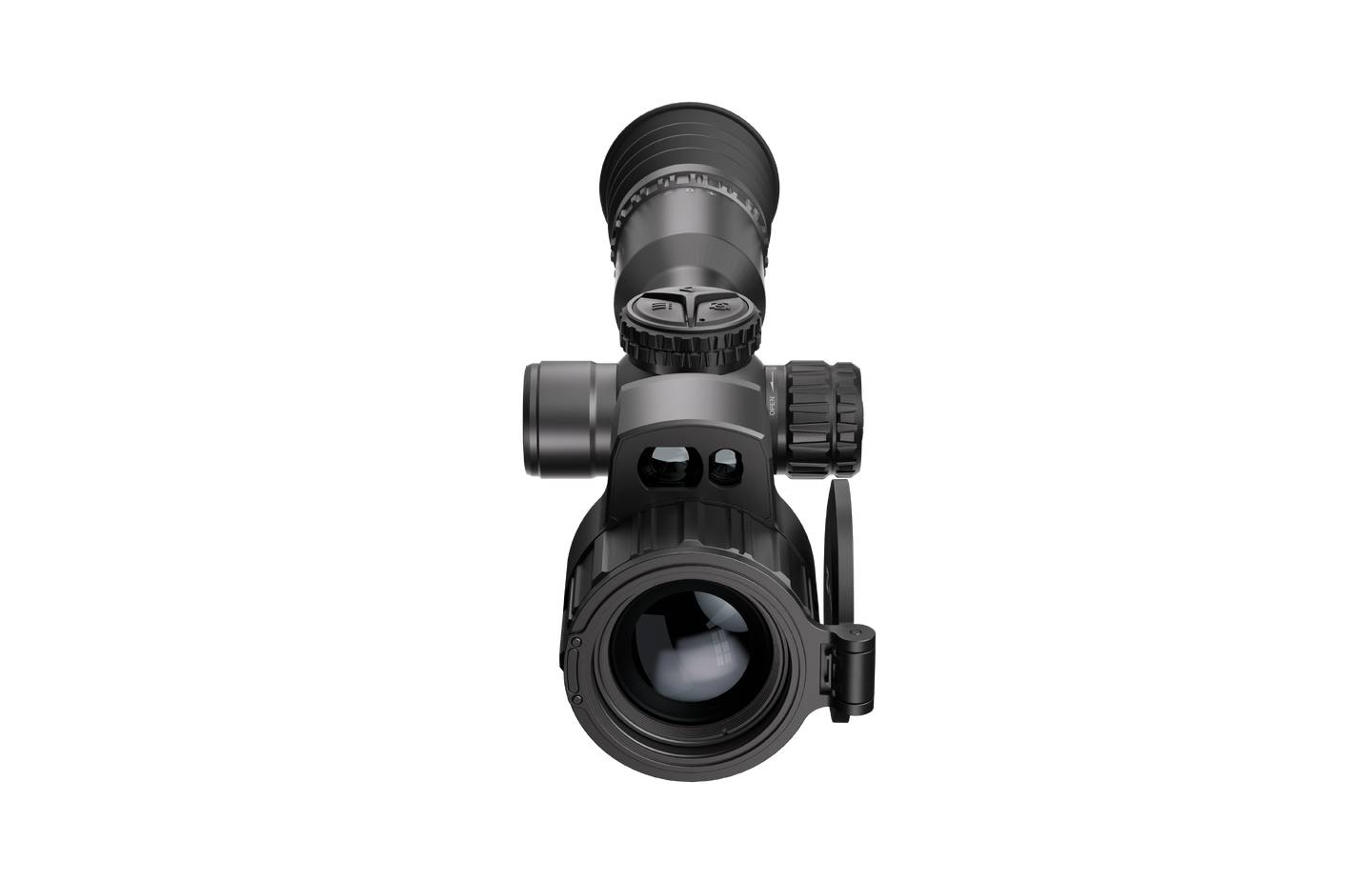

Hikmicro NEOS Kikkertsikte NH35L
Lett og kompakt termisk kikkertsikte
Hikmicro NEOS – kikkertsikte
NEOS er et lett og kompakt termisk kikkertsikte som kombinerer moderne teknologi med høy kostnadseffektivitet – et praktisk valg for jegere som ønsker solid ytelse i et mer smidig format.
| Thermal Module |
NEOS NE25 |
NEOS NH25L | NEOS NH35L |
| Thermal Resolution |
256×192, 12 µm |
320×240, 12 µm | 384 x 288, 12 µm |
| Frame Rate |
50 Hz |
||
| Response Waveband |
8 µm to 14 µm |
||
| NETD |
Less than 18 mK (@25°C), F# = 1.0 |
||
| Lens (Focal Length) |
25 mm, F1.0 |
35 mm, F1.0 | |
| Detection Range |
1200 meter |
1800 meter | |
| Magnification |
3,5x – 24,5x |
||
| Field of View (HxV) |
7,0° x 5,3° / 12,2m x 9,3m |
7,6° x 5,7° / 13,1m x 10,0m | |
| Image Display | |||
| Display |
0,49 inch AMOLED |
||
| Palettes |
White Hot, Black Hot, Red Hot, Fusion, |
||
| Exit Pupil |
8 mm |
||
| Eye Relief |
55 mm |
||
| Brightness Adjustment |
Yes |
||
| Tone Adjustment |
Cold, Warm |
||
| Contrast Adjustment | Yes | ||
| Zoom Pro |
Yes |
||
| Image Pro 3.0 |
Yes |
||
| HSIS (Hikmicro Shutterless Image System) |
Yes |
||
| System | |||
| Record Video |
On-board video recording |
||
| Capture Snapshot |
Yes |
||
| Audio Recording |
Yes |
||
| Recoil-activation Recording |
Yes |
||
| Standby Mode |
Yes |
||
| Storage |
Built-in, 64 GB |
||
| PIP |
Yes |
||
| Hotspot |
Yes |
||
| Zeroing Profiles |
5 |
||
| Max Recoil |
1000 g / 0,4 ms |
||
| Freeze Zeroing |
Yes |
||
| Local Album |
Yes |
||
| Ballistic Calculation | Yes | ||
| Click Value | 1 click = 1 cm @ 100 m | ||
| Distance Measurement | Yes | ||
| General | |||
| Battery Type |
One Rechargeable Lithium Battery (internal), one replaceable and rechargeable 18650 battery |
||
| Battery Operating Time |
9,5 hours |
9 hours | 8 hours |
| IP |
IP67 |
||
| Mounting |
Standard 30 mm |
||
| Dimension |
354,6×86,1×56,1 mm |
354,6×86,1×75,8 mm | |
| Weight |
540 g |
550 g | 570 g |
| Working Temperature |
-30 C to 55 C |
||
| Center Height |
32 mm |
||
| Laser Range Finder | |||
| Safety Class | Class 1 | ||
| Wave Length | 905 nm | ||
| Measuring Range | Min 10 m, max 1000 m, +/- 1 m | ||
