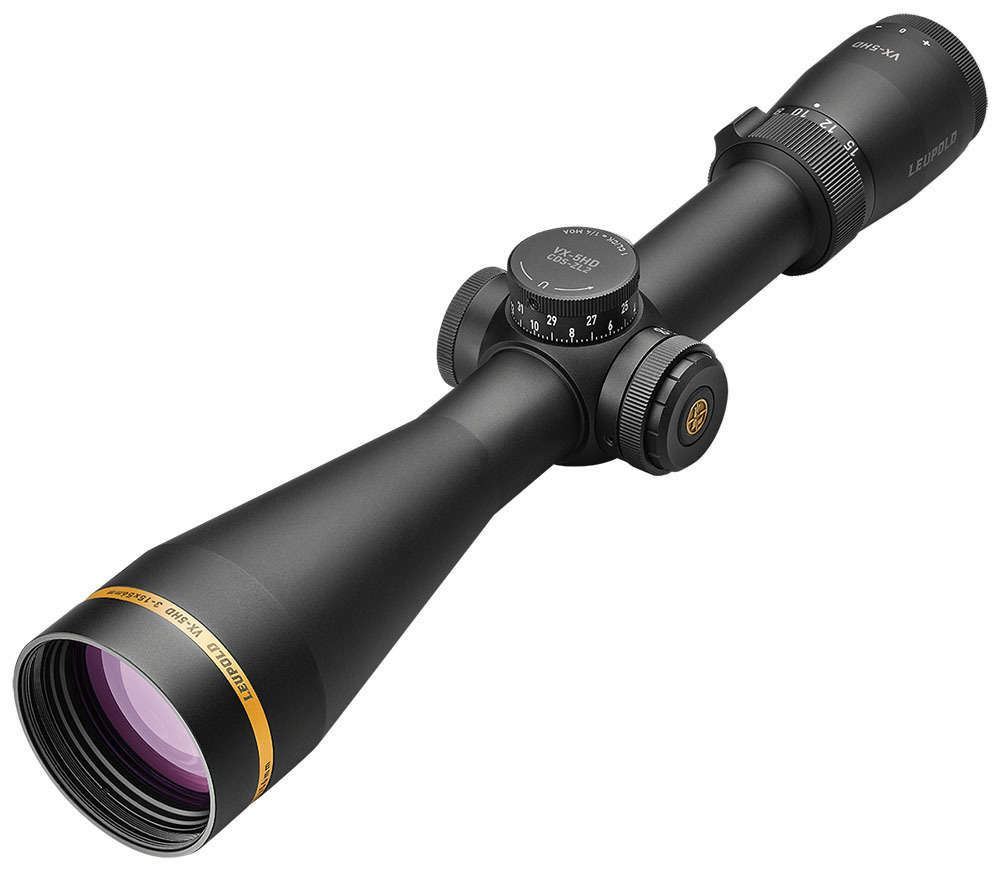

Leupold VX-5HD 3-15x56mm (30mm) CDS-ZL2 Side Focus Matte Illum. FireDot 4 Fine
VX-5HD tar optisk ytelse til et helt nytt nivå! Den har et High-Definition optisk system som gir kikkerten en fantastisk skarphet og klarhet. Oppløsningen og alt annet er endel av Leupolds Twilight Max Light Management System. Noe som gir jegere en synlig fordel ved daggry og skumring. Duplex retikkel med lys. Leupold har 30 års garanti på sine kikkertsikter.
Leupold VX-5HD 3-15x56mm (30mm) CDS-ZL2 Side Focus Matte Illum. FireDot 4 Fine
VX-5HD tar optisk ytelse til et helt nytt nivå! Den har et High-Definition optisk system som gir kikkerten en fantastisk skarphet og klarhet. Oppløsningen og alt annet er endel av Leupolds Twilight Max Light Management System. Noe som gir jegere en synlig fordel ved daggry og skumring. Duplex retikkel med lys.
Med 3-15x forstørrelse og 56mm lysåpning er dette en kikkert du kan bruke til det meste av jakt i Norge!
– Montasjestørrelse/mellomrør: 30mm
– Vekt: 632 gram
– Lengde: 34,5 cm
Leupold signerer med sin 30 års garanti på denne varen!
Let there be light! VX-5HD 3-15×56 gives you all of the flexibility of its 44mm counterpart, but with the 56mm objective bel, it maximizes as much exit pupil light as your eye can handle. From the mountains, to the open plains, to range day, this scope has the ability to dominate them all.
The VX-5HD has everything you need and nothing you don’t. Leupold’s Guard-ion lens coating shed water and dirt, keeping your target clear even when the weather isn’t, while Leupold’s Twilight Max HD light management system delivers the maximum amount of usable light to your eye for unmatched low-light performance and clarity. With the two-turn CDS ZeroLock 2 adjustment (Leupold’s one-of-kind Custom Dial System), you’ll have the confidence to take long-range shots without worrying about holdovers. Take this riflescope out for the day, and you’ll quickly realize the VX-5HD is the lightest, most rugged 5:1 riflescope in its class and will never let you down.
- 2nd Generation Argon/Krypton Waterproofing
- Generous Eyebox
- FireDot Illumination
- Twin Bias Spring Erector System
- BAS (Ballistic Aiming System)
- MST (Motion Sensor Technology)
- 30mm Maintube
- Side Focus
- 6061-T6 Aircraft Quality Aluminum
- Push Button Illumination
- Twilight Max Light Management System
- Guard-Ion Rain Shedding Coating
- CDS-ZL2 Zero Lock Adjustment with Revolution Indicator
- 5:1 Zoom Ratio
- Pop Up Rezero Windage Adjustment

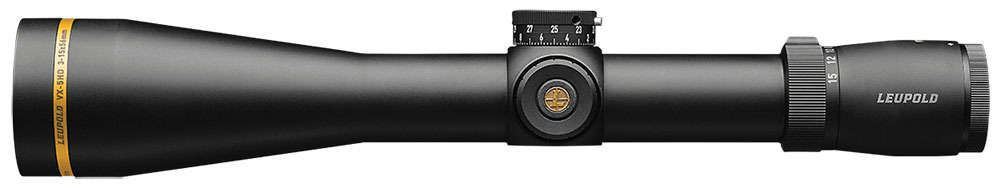

| Length – A (in) | 13.58 |
| Mounting Space – B (in) | 5.32 |
| Illustration – C | 1.26 |
| Illustration – D | 2.59 |
| Eyepiece Length – E | 3.31 |
| Objective Length – F | 4.94 |
| Objective Diameter – G | 2.54 |
| Eyepiece Diameter – H | 1.80 |
| Tube Diameter- k (in) | 1.18 |
| Tube Diameter- k (mm) | 30 |
| Length – A (cm) | 34.5 |
| Mounting Space – B (cm) | 13.5 |
Specifications
| Adjustable Parallax | Side Focus |
|---|---|
| Battery Type | CR2032 |
| BDC Dial Included | No |
| Custom Dial System (CDS) | Yes |
| Custom BDC Dial Compatible | Yes |
| Daylight Bright Illumination | Yes |
| Elevation Adjustment Type | CDS-ZL2 |
| Electronic Reticle Level | No |
| Light Management System | Professional-Grade Optical System |
| Locking Dial | Yes |
| Magnification Type | Variable |
| Nightvision Compatible Illumination | No |
| Reticle Focal Plane | Second Focal Plane |
| Revolution Indicator | Yes |
| Reticle | Illum. FireDot 4 Fine |
| Rezero Type | Set Screw |
| Reticle Type | Illuminated |
| Adjustable Objective | No |
| Switch Type | Push Button |
| Windage Adjustment Type | Pop-Up Rezero |
| Weight (oz) | 22.2 |
| Elevation Adjustment Value per Click | 1cm @ 100m |
| Elevation Adjustment Range (MOA) | 75 |
| Elevation Adjustment Range (MIL) | 22 |
| Elevation Adjustment Range (cm @ 100m) | 218 |
| Elevation Adjustment Per Revolution | 80CM @ 100M |
| Elevation Dial Travel Limit | 15.2MIL |
| Windage Adjustment Value per Click | 1cm @ 100m |
| Windage Adjustment Range (MOA) | 75 |
| Windage Adjustment Range (MIL) | 22 |
| Windage Adjustment Range (cm @ 100m) | 218 |
| Windage Adjustment Per Revolution | 80CM @ 100M |
| Magnification Max | 15 |
| Magnification Min | 3 |
| Objective Lens Diameter (mm) | 56 |
| Linear FOV Low Mag (ft@100yds) | 38.3 |
| Linear FOV High Mag (ft@100yds) | 7.7 |
| Angular FOV Low Mag (Degrees) | 7.3 |
| Angular FOV High Mag (Degrees) | 1.5 |
| Eye Relief Low Mag (in) | 3.7 |
| Eye Relief High Mag (in) | 3.8 |
| Minimum Parallax-Free Distance (yd) | 50 |
| Battery Life (hr), Low Intensity | 1600 |
| Battery Life (hr), Medium Intensity | 1000 |
| Battery Life (hr), High Intensity | 300 |
| Number of Illum Settings | 8 |
